RFID是許多人日常中不可或缺的裝置,舉凡大樓門禁、電梯權限控制,很多企業也用RFID來進行出勤管理。最常用到的RFID模組就是RC522了,我們用最簡潔的程式,來讀取卡片的UID,並且和已儲存過的UID進行比對。然後再配合OLED,讓它變成可以實用的系統!

購買套件:https://www.jmaker.com.tw/products/rfid-project

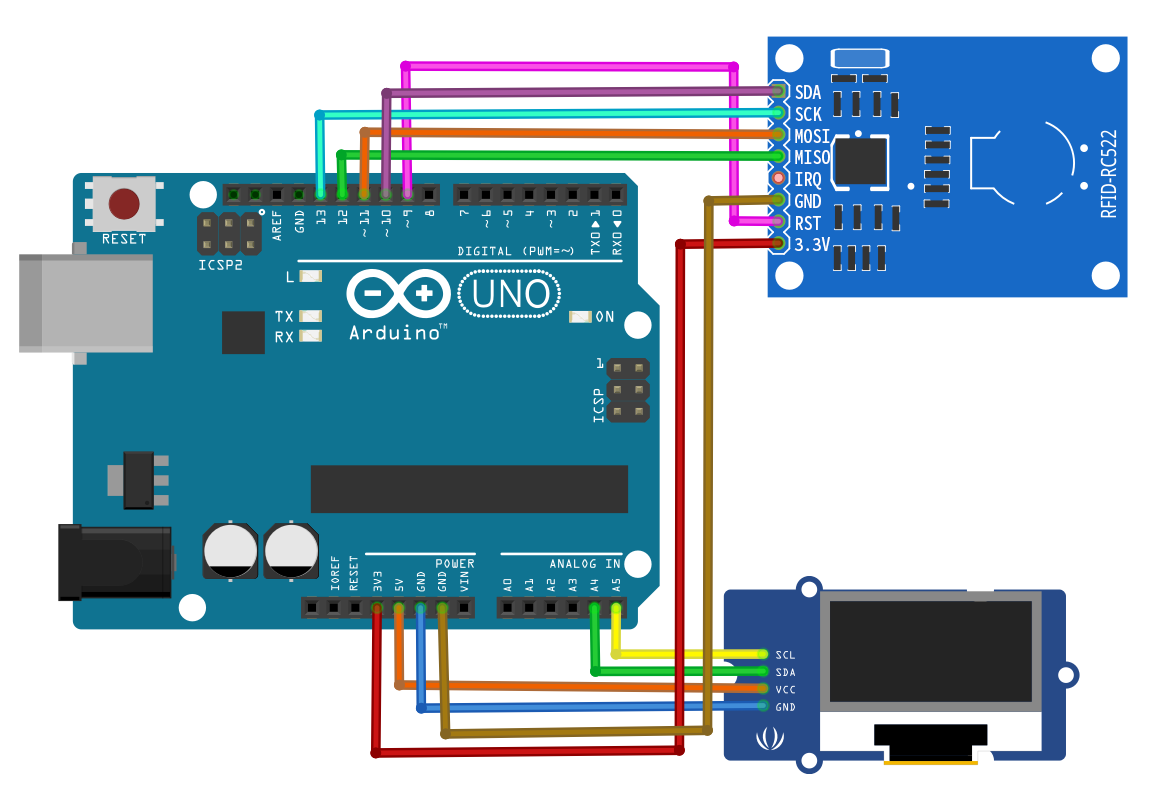

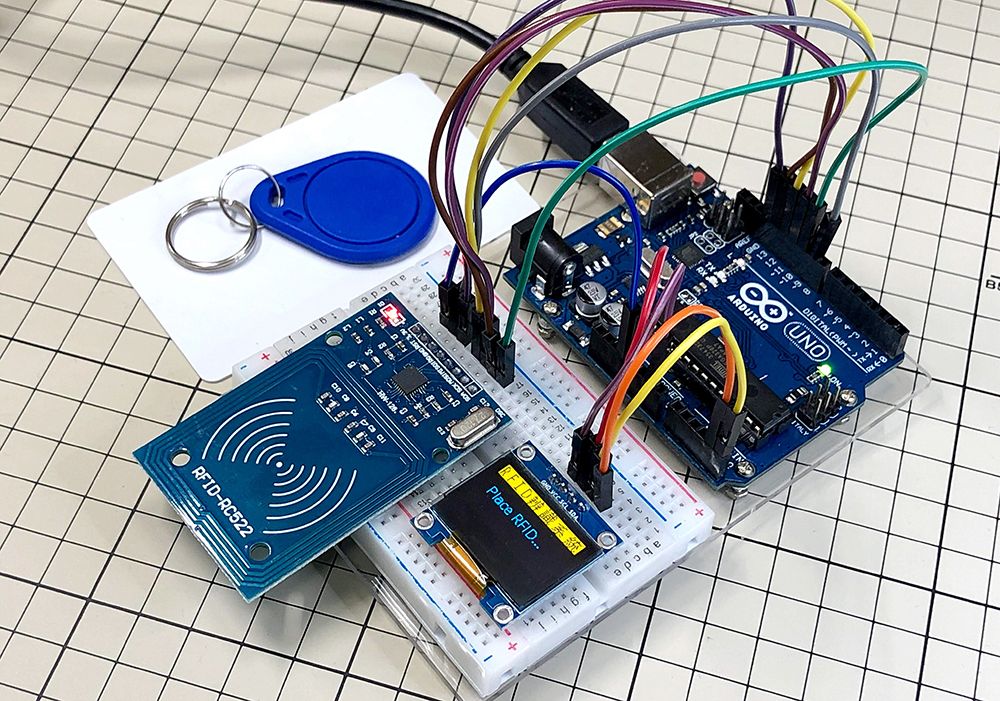

在寫程式前,先把線都接好,因為後續還會用到OLED,所以把OLED也一併接好吧!如果不需要OLED的朋友,就不用理會OLED的部份囉!

rfid-2

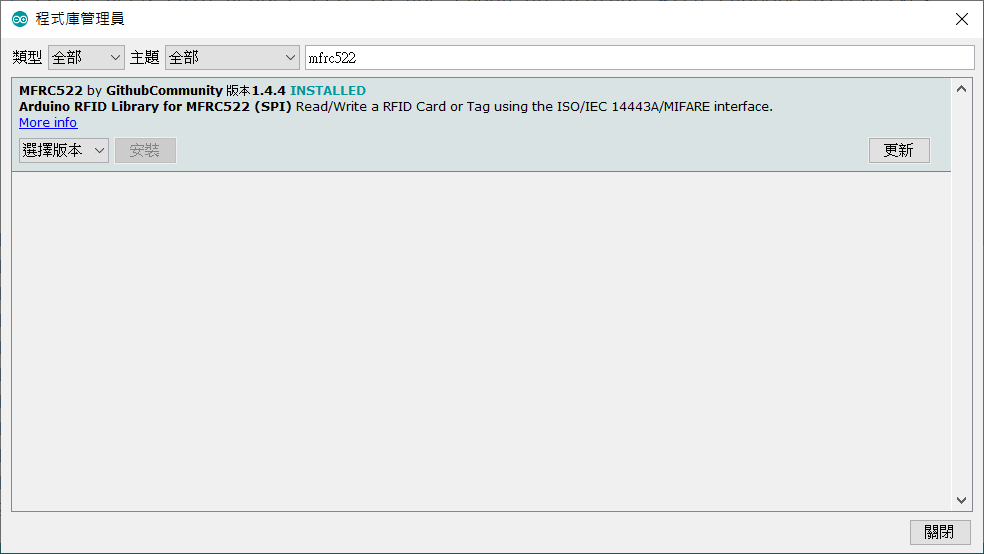

再來就是安裝函式庫了,傑森測試過最方便也真正可以用的,MFRC522函式庫一定是第一名,而且它可以在程式管理員中直接下載。

rfid-1

我們先來寫支程式來讀取RFID卡或是磁扣的UID,UID是每張卡獨有的、不重複的,所以大多數安全層級不高的門禁管控,都是直接從UID來識別每一張卡。

程式:讀取卡片UID,從監控視窗查看

#include <SPI.h>
#include <MFRC522.h>

#define RST_PIN         9
#define SS_PIN          10  //就是模組上的SDA接腳


MFRC522 mfrc522;   // 建立MFRC522實體

void setup() {

  Serial.begin(9600);

  SPI.begin();        // 初始化SPI介面

  mfrc522.PCD_Init(SS_PIN, RST_PIN); // 初始化MFRC522卡
  Serial.print(F("Reader "));
  Serial.print(F(": "));
  mfrc522.PCD_DumpVersionToSerial(); // 顯示讀卡設備的版本

}


void loop() {

  // 檢查是不是一張新的卡
  if (mfrc522.PICC_IsNewCardPresent() && mfrc522.PICC_ReadCardSerial()) {
      // 顯示卡片內容
      Serial.print(F("Card UID:"));
      dump_byte_array(mfrc522.uid.uidByte, mfrc522.uid.size); // 顯示卡片的UID
      Serial.println();
      Serial.print(F("PICC type: "));
      MFRC522::PICC_Type piccType = mfrc522.PICC_GetType(mfrc522.uid.sak);
      Serial.println(mfrc522.PICC_GetTypeName(piccType));  //顯示卡片的類型

      mfrc522.PICC_HaltA();  // 卡片進入停止模式
    }
}

/**
 * 這個副程式把讀取到的UID,用16進位顯示出來
 */
void dump_byte_array(byte *buffer, byte bufferSize) {
  for (byte i = 0; i < bufferSize; i++) {
    Serial.print(buffer[i] < 0x10 ? " 0" : " ");
    Serial.print(buffer[i], HEX);
  }
}

這支程式是傑森簡化函式庫所附的範例改寫的,底下這行會檢測RFID設備的版本,基本上也算是偵測設是否運作正常。

mfrc522.PCD_DumpVersionToSerial();

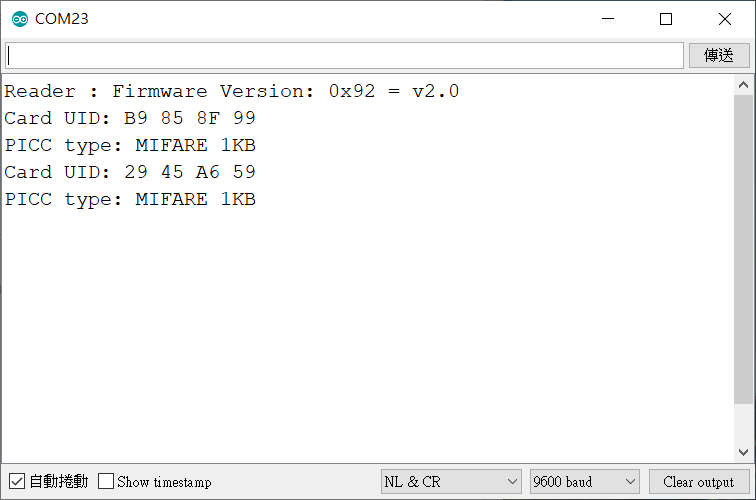

讀完卡片後,其中最重要的的UID,是存在mfrc522.uid.uidByte中的,利用dump_byte_array這支副程式把UID顯示在監控視窗中。

rf-1

程式並不難,大家應該都能完成。

我們已經得到卡片的UID了,把它記下來,接下來我們要寫一支程式,來判斷是不是偵測到已記錄的卡片。

程式:判斷卡片UID是否通過,從監控視窗查看

#include <SPI.h>
#include <Wire.h>
#include <MFRC522.h>

#define RST_PIN         9
#define SS_PIN          10 //RC522卡上的SDA

MFRC522 mfrc522;   // 建立MFRC522實體

char *reference;

byte uid[]={0x49, 0xE5, 0xA0, 0xC1};  //這是我們指定的卡片UID,可由讀取UID的程式取得特定卡片的UID,再修改這行


void setup()
{
  Serial.begin(9600);

  SPI.begin();

  mfrc522.PCD_Init(SS_PIN, RST_PIN); // 初始化MFRC522卡
  Serial.print(F("Reader "));
  Serial.print(F(": "));
  mfrc522.PCD_DumpVersionToSerial(); // 顯示讀卡設備的版本
}

void loop() {
  //Serial.print("reading...");
  // 檢查是不是偵測到新的卡
  if (mfrc522.PICC_IsNewCardPresent() && mfrc522.PICC_ReadCardSerial()) {
      // 顯示卡片的UID
      Serial.print(F("Card UID:"));
      dump_byte_array(mfrc522.uid.uidByte, mfrc522.uid.size); // 顯示卡片的UID
      Serial.println();
      Serial.print(F("PICC type: "));
      MFRC522::PICC_Type piccType = mfrc522.PICC_GetType(mfrc522.uid.sak);
      Serial.println(mfrc522.PICC_GetTypeName(piccType));  //顯示卡片的類型

      //把取得的UID,拿來比對我們指定好的UID
      bool they_match = true; // 初始值是假設為真
      for ( int i = 0; i < 4; i++ ) { // 卡片UID為4段,分別做比對
        if ( uid[i] != mfrc522.uid.uidByte[i] ) {
          they_match = false; // 如果任何一個比對不正確,they_match就為false,然後就結束比對
          break;
        }
      }

      //在監控視窗中顯示比對的結果
      if(they_match){
        Serial.print(F("Access Granted!"));
      }else{
        Serial.print(F("Access Denied!"));
      }
      mfrc522.PICC_HaltA();  // 卡片進入停止模式
    }
}

/**
 * 這個副程式把讀取到的UID,用16進位顯示出來
 */
void dump_byte_array(byte *buffer, byte bufferSize) {
  for (byte i = 0; i < bufferSize; i++) {
    Serial.print(buffer[i] < 0x10 ? " 0" : " ");
    Serial.print(buffer[i], HEX);
  }
}

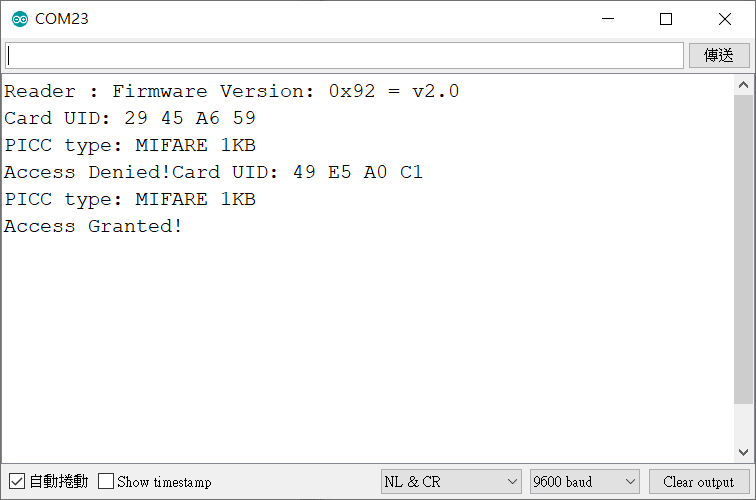

程式大致上和上一支讀取UID差不多,底下這行最重要,請換上之前讀到的其中一張卡片的UID,這樣我們才能進行比對。

byte uid[]={0x49, 0xE5, 0xA0, 0xC1};

再來就是透過底兩段程式碼,來判斷放入的卡片,是不是和我們記錄的UID完全相同。

//把取得的UID,拿來比對我們指定好的UID
bool they_match = true; // 初始值是假設為真
for ( int i = 0; i < 4; i++ ) { // 卡片UID為4段,分別做比對
    if ( uid[i] != mfrc522.uid.uidByte[i] ) {
        they_match = false; // 如果任何一個比對不正確,they_match就為false,然後就結束比對
        break;
     }
}

//在監控視窗中顯示比對的結果
if(they_match){
    Serial.print(F("Access Granted!"));
}else{
    Serial.print(F("Access Denied!"));
}

rfid-6

接下來我們附上兩支結合了OLED的程式,這次傑森是用u8g2函式庫配合0.96吋的OLED。有關OLED部份,請參考傑森之前的文章。

一套u8g2函式庫,玩遍所有OLED

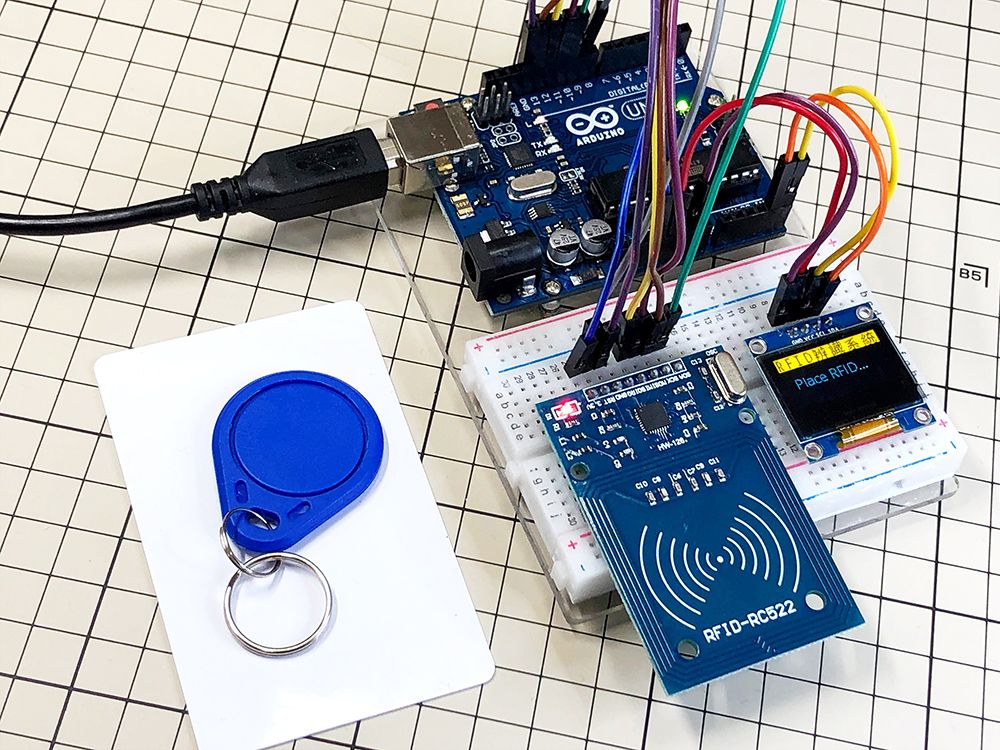

rfid-3

程式:讀取卡片UID,從OLED查看

#include <Arduino.h>
#include <U8g2lib.h>

#include <SPI.h>
#include <Wire.h>
#include <MFRC522.h>

//MFRC522用到的兩個pin
#define RST_PIN         9
#define SS_PIN          10 //RC522卡上的SDA

MFRC522 mfrc522;   // 建立MFRC522實體

char *reference;  //顯示設備正常與否的文字

//這行是NodeOLED用的
//U8G2_SSD1306_128X64_NONAME_1_SW_I2C u8g2(U8G2_R0, /* clock=*/ D2, /* data=*/ D1, /* reset=*/ U8X8_PIN_NONE);
U8G2_SSD1306_128X64_NONAME_1_HW_I2C u8g2(U8G2_R0, /* reset=*/ U8X8_PIN_NONE);  //Arduino Uno+0.96吋OLED用這行
//U8G2_SH1106_128X64_NONAME_1_HW_I2C u8g2(U8G2_R0, /* reset=*/ U8X8_PIN_NONE); //如果用1.3吋OLED用這行

//OLED上方標題,用圖形表現
static const unsigned char PROGMEM  title[256] = {
0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XBF,0XEF,0XFE,0XFF,0XFF,0XFF,0XFF,0XFF,
0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFD,0XE7,0XBF,0XEF,0XFA,0XFF,0XFF,0XFF,0XFD,0XFE,
0XE3,0X3F,0XF8,0XC1,0X1F,0XFE,0XFB,0XEE,0X7F,0X83,0XFA,0XFF,0XE3,0XFF,0X7E,0XFE,
0XDB,0XBF,0XFF,0XF7,0XDF,0XFD,0XE0,0X82,0XFF,0XFF,0XF6,0X1F,0XFC,0XFF,0X12,0XE0,
0XBB,0XBF,0XFF,0XF7,0XDF,0XFB,0XFF,0XFE,0X0F,0XB6,0XFE,0XE1,0XFE,0X7F,0XBB,0XFF,
0XBB,0XBF,0XFF,0XF7,0XDF,0XF7,0XA5,0XB6,0XFF,0X03,0XF0,0X3F,0XFF,0XBF,0XBB,0XFB,
0XBB,0XBF,0XFF,0XF7,0XDF,0XF7,0XB5,0XD6,0X1F,0XFE,0XFE,0XDF,0XF3,0X1F,0XDC,0XFB,
0XBB,0XBF,0XFF,0XF7,0XDF,0XF7,0XB7,0XDE,0XFF,0X83,0XF6,0X07,0XFC,0XFF,0XDE,0XF3,
0XDB,0X3F,0XF8,0XF7,0XDF,0XF7,0XA0,0X82,0X1F,0XBA,0XFA,0X7F,0XE6,0X7F,0X0B,0XF4,
0XE3,0XBF,0XFF,0XF7,0XDF,0XF7,0XFB,0XEE,0XFF,0XBB,0XFA,0X9F,0XDF,0XBF,0XB9,0XE5,
0XDB,0XBF,0XFF,0XF7,0XDF,0XF7,0XFB,0XEE,0X1F,0X82,0XFD,0X03,0X80,0X1F,0XBE,0XFD,
0XDB,0XBF,0XFF,0XF7,0XDF,0XF7,0XE0,0X82,0XDF,0XBA,0XFD,0XFB,0XBE,0XFF,0XB3,0XFD,
0XDB,0XBF,0XFF,0XF7,0XDF,0XFB,0XFB,0XEE,0XDF,0XBA,0XFE,0XCF,0XF6,0XBF,0XB6,0XFD,
0XBB,0XBF,0XFF,0XF7,0XDF,0XFD,0X7B,0XEF,0XDF,0X82,0XF4,0XE7,0XCE,0XBF,0XD5,0XED,
0XBB,0XBF,0XFF,0XC1,0X1F,0XFE,0X7D,0XEF,0X1F,0X7A,0XF5,0XF9,0XBE,0XBF,0XDD,0XED,
0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XBD,0XEF,0XDF,0XBF,0XFB,0X1F,0XFE,0XDF,0XE7,0XF3,
};

void setup()
{
  Serial.begin(9600);
  SPI.begin();        // 初始化SPI介面

  u8g2.begin();

  mfrc522.PCD_Init(SS_PIN, RST_PIN); // 初始化MFRC522卡
  Serial.print(F("Reader "));
  Serial.print(F(": "));
  mfrc522.PCD_DumpVersionToSerial(); // 顯示讀卡設備的版本

  //測試RFID設備是否正常
  byte v = mfrc522.PCD_ReadRegister(mfrc522.VersionReg);
  if((v == 0x00) || (v == 0xFF)){
    reference = "Reader Error";
    showText1();
  }else{
    reference = "Reader Ready";
    showText1();
    delay(1500);
    showText2();
  }
}

//顯示第一行文字
void showText1(){
  u8g2.setFont(u8g2_font_samim_16_t_all); //字型
  u8g2.firstPage();
  do {
    u8g2.drawXBMP(0,0, 128, 16, title);
    u8g2.drawStr(0,40,"Reader Testing...");

    u8g2.drawStr(10,60,reference);
  } while ( u8g2.nextPage() );
}
//顯示第二行文字
void showText2(){
  char *reference;
  u8g2.setFont(u8g2_font_samim_16_t_all); //字型
  u8g2.firstPage();
  do {
      u8g2.drawXBMP(0,0, 128, 16, title);
      u8g2.drawStr(10,40,"Place RFID...");
  } while ( u8g2.nextPage() );
}

void loop() {
  //Serial.print("reading...");
  // 檢查是不是偵測到新的卡
  if (mfrc522.PICC_IsNewCardPresent() && mfrc522.PICC_ReadCardSerial()) {
      // 顯示卡片內容
      Serial.print(F("Card UID:"));
      dump_byte_array(mfrc522.uid.uidByte, mfrc522.uid.size); // 顯示卡片的UID到監控視窗
      //顯示卡片UID;mfrc522.uid.uidByte內容就是UID,資料是byte的陣列,我們要逐一取出後,顯示在OLED上
      for(int i = 0; i < mfrc522.uid.size; i++)
      {
        u8g2.firstPage();
        do {
          u8g2.drawXBMP(0,0, 128, 16, title);
          u8g2.setCursor(10,40);
          u8g2.print("RFID UID:");
          for (byte i = 0; i < mfrc522.uid.size; i++) {
            if(mfrc522.uid.uidByte[i] < 0x10){  //讀到小於10的數字時,前面多顯示一個零
              u8g2.setCursor(10+i*25,60);
              u8g2.print("0");
              u8g2.setCursor(10+i*25+10,60);
              u8g2.print(mfrc522.uid.uidByte[i], HEX);  //用HEX的方式顯示一段UID,如A0或C1等。
            }else{
              u8g2.setCursor(10+i*25,60);
              u8g2.print(mfrc522.uid.uidByte[i], HEX);
            }


          }
        } while ( u8g2.nextPage() );
      }

      Serial.println();
      Serial.print(F("PICC type: "));
      MFRC522::PICC_Type piccType = mfrc522.PICC_GetType(mfrc522.uid.sak);
      Serial.println(mfrc522.PICC_GetTypeName(piccType));  //顯示卡片的類型

      mfrc522.PICC_HaltA();  // 卡片進入停止模式
    }
}

/**
 * 這個副程式把讀取到的UID,用16進位顯示出來
 */
void dump_byte_array(byte *buffer, byte bufferSize) {
  for (byte i = 0; i < bufferSize; i++) {
    Serial.print(buffer[i] < 0x10 ? " 0" : " ");
    Serial.print(buffer[i], HEX);
  }
}

程式:判斷卡片UID是否通過,從OLED上查看

#include <Arduino.h>
#include <U8g2lib.h>

#include <SPI.h>
#include <Wire.h>
#include <MFRC522.h>

#define RST_PIN         9
#define SS_PIN          10 //RC522卡上的SDA

MFRC522 mfrc522;   // 建立MFRC522實體

char *reference;

byte uid[]={0x49, 0xE5, 0xA0, 0xC1};  //這是我們指定的卡片UID,可由讀取UID的程式取得特定卡片的UID,再修改這行

//這行是NodeOLED用的
//U8G2_SSD1306_128X64_NONAME_1_SW_I2C u8g2(U8G2_R0, /* clock=*/ D2, /* data=*/ D1, /* reset=*/ U8X8_PIN_NONE);
U8G2_SSD1306_128X64_NONAME_1_HW_I2C u8g2(U8G2_R0, /* reset=*/ U8X8_PIN_NONE);  //Arduino Uno+0.96吋OLED用這行
//U8G2_SH1106_128X64_NONAME_1_HW_I2C u8g2(U8G2_R0, /* reset=*/ U8X8_PIN_NONE); //如果用1.3吋OLED用這行

//OLED上方標題,用圖形表現
static const unsigned char PROGMEM  title[256] = {
0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XBF,0XEF,0XFE,0XFF,0XFF,0XFF,0XFF,0XFF,
0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFD,0XE7,0XBF,0XEF,0XFA,0XFF,0XFF,0XFF,0XFD,0XFE,
0XE3,0X3F,0XF8,0XC1,0X1F,0XFE,0XFB,0XEE,0X7F,0X83,0XFA,0XFF,0XE3,0XFF,0X7E,0XFE,
0XDB,0XBF,0XFF,0XF7,0XDF,0XFD,0XE0,0X82,0XFF,0XFF,0XF6,0X1F,0XFC,0XFF,0X12,0XE0,
0XBB,0XBF,0XFF,0XF7,0XDF,0XFB,0XFF,0XFE,0X0F,0XB6,0XFE,0XE1,0XFE,0X7F,0XBB,0XFF,
0XBB,0XBF,0XFF,0XF7,0XDF,0XF7,0XA5,0XB6,0XFF,0X03,0XF0,0X3F,0XFF,0XBF,0XBB,0XFB,
0XBB,0XBF,0XFF,0XF7,0XDF,0XF7,0XB5,0XD6,0X1F,0XFE,0XFE,0XDF,0XF3,0X1F,0XDC,0XFB,
0XBB,0XBF,0XFF,0XF7,0XDF,0XF7,0XB7,0XDE,0XFF,0X83,0XF6,0X07,0XFC,0XFF,0XDE,0XF3,
0XDB,0X3F,0XF8,0XF7,0XDF,0XF7,0XA0,0X82,0X1F,0XBA,0XFA,0X7F,0XE6,0X7F,0X0B,0XF4,
0XE3,0XBF,0XFF,0XF7,0XDF,0XF7,0XFB,0XEE,0XFF,0XBB,0XFA,0X9F,0XDF,0XBF,0XB9,0XE5,
0XDB,0XBF,0XFF,0XF7,0XDF,0XF7,0XFB,0XEE,0X1F,0X82,0XFD,0X03,0X80,0X1F,0XBE,0XFD,
0XDB,0XBF,0XFF,0XF7,0XDF,0XF7,0XE0,0X82,0XDF,0XBA,0XFD,0XFB,0XBE,0XFF,0XB3,0XFD,
0XDB,0XBF,0XFF,0XF7,0XDF,0XFB,0XFB,0XEE,0XDF,0XBA,0XFE,0XCF,0XF6,0XBF,0XB6,0XFD,
0XBB,0XBF,0XFF,0XF7,0XDF,0XFD,0X7B,0XEF,0XDF,0X82,0XF4,0XE7,0XCE,0XBF,0XD5,0XED,
0XBB,0XBF,0XFF,0XC1,0X1F,0XFE,0X7D,0XEF,0X1F,0X7A,0XF5,0XF9,0XBE,0XBF,0XDD,0XED,
0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XBD,0XEF,0XDF,0XBF,0XFB,0X1F,0XFE,0XDF,0XE7,0XF3,
};

void setup()
{



  Serial.begin(9600);

  SPI.begin();        // 初始化SPI介面

  u8g2.begin();

  mfrc522.PCD_Init(SS_PIN, RST_PIN); // 初始化MFRC522卡
  Serial.print(F("Reader "));
  Serial.print(F(": "));
  mfrc522.PCD_DumpVersionToSerial(); // 顯示讀卡設備的版本

  //測試RFID設備是否正常
  byte v = mfrc522.PCD_ReadRegister(mfrc522.VersionReg);
  if((v == 0x00) || (v == 0xFF)){
    reference = "Reader Error";
    showText1();
  }else{
    reference = "Reader Ready";
    showText1();
    delay(1500);
    showText2();
  }
}

void showText1(){
  u8g2.setFont(u8g2_font_samim_16_t_all); //字型
  u8g2.firstPage();
  do {
      u8g2.drawXBMP(0,0, 128, 16, title);
      u8g2.drawStr(0,40,"Reader Testing...");

    u8g2.drawStr(10,60,reference);
  } while ( u8g2.nextPage() );
}

void showText2(){
  char *reference;
  u8g2.setFont(u8g2_font_samim_16_t_all); //字型
  u8g2.firstPage();
  do {
      u8g2.drawXBMP(0,0, 128, 16, title);
      u8g2.drawStr(10,40,"Place RFID...");
  } while ( u8g2.nextPage() );
}

void loop() {
  //Serial.print("reading...");
  // 檢查是不是偵測到新的卡
  if (mfrc522.PICC_IsNewCardPresent() && mfrc522.PICC_ReadCardSerial()) {
      // 顯示卡片的UID
      Serial.print(F("Card UID:"));
      dump_byte_array(mfrc522.uid.uidByte, mfrc522.uid.size); // 顯示卡片的UID

      for(int i = 0; i < mfrc522.uid.size; i++)
      {
        u8g2.firstPage();
        do {
          u8g2.drawXBMP(0,0, 128, 16, title);
          u8g2.setCursor(10,40);
          u8g2.print("RFID UID:");
          for (byte i = 0; i < mfrc522.uid.size; i++) {

            if(mfrc522.uid.uidByte[i] < 0x10){
              u8g2.setCursor(10+i*25,60);
              u8g2.print("0");
              u8g2.setCursor(10+i*25+10,60);
              u8g2.print(mfrc522.uid.uidByte[i], HEX);
            }else{
              u8g2.setCursor(10+i*25,60);
              u8g2.print(mfrc522.uid.uidByte[i], HEX);
            }


          }
        } while ( u8g2.nextPage() );
      }


      Serial.println();
      Serial.print(F("PICC type: "));
      MFRC522::PICC_Type piccType = mfrc522.PICC_GetType(mfrc522.uid.sak);
      Serial.println(mfrc522.PICC_GetTypeName(piccType));  //顯示卡片的類型

      //把取得的UID,拿來比對我們指定好的UID
      bool they_match = true; // 初始值是假設為真
      for ( int i = 0; i < 4; i++ ) { // 卡片UID為4段,分別做比對
        if ( uid[i] != mfrc522.uid.uidByte[i] ) {
          they_match = false; // 如果任何一個比對不正確,they_match就為false,然後就結束比對
          break;
        }
      }
      Serial.println(they_match);

      //在OLED顯示比對的結果
      u8g2.firstPage();
      do {
          u8g2.drawXBMP(0,0, 128, 16, title);
          if(they_match){
            u8g2.drawStr(10,40,"Access Granted");
          }else{
            u8g2.drawStr(10,40,"Access Denied");
          }

      } while ( u8g2.nextPage() );
      delay(1500);
      u8g2.firstPage();
      do {
          u8g2.drawXBMP(0,0, 128, 16, title);
          u8g2.drawStr(10,40,"Place RFID...");
      } while ( u8g2.nextPage() );
      mfrc522.PICC_HaltA();  // 卡片進入停止模式
    }
}

/**
 * 這個副程式把讀取到的UID,用16進位顯示出來
 */
void dump_byte_array(byte *buffer, byte bufferSize) {
  for (byte i = 0; i < bufferSize; i++) {
    Serial.print(buffer[i] < 0x10 ? " 0" : " ");
    Serial.print(buffer[i], HEX);
  }
}
