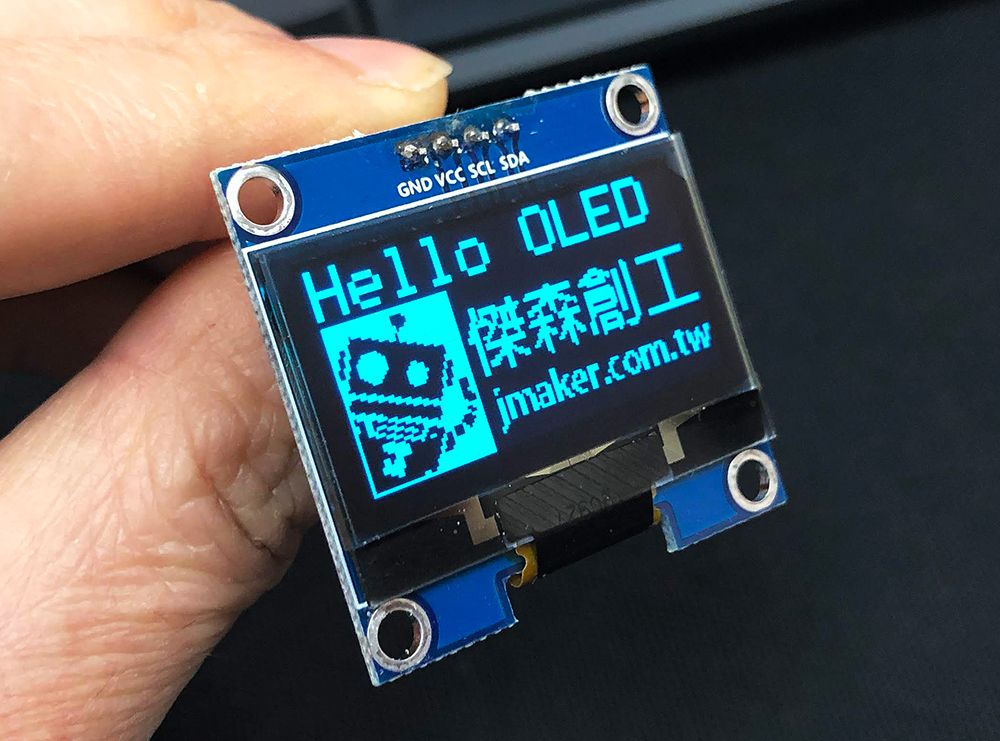

OLED的尺寸還不少，常見的0.96吋和0.91吋都屬於SSD1106系列，但常見的就有一款1.3吋的，這就麻煩了，它是SH1106模組，函式庫無法共用，傑森習慣上用wonho-maker改寫自Adafruit SSD1106的函式庫，因為用法和Adafruit SSD1106幾乎相同，很方便。

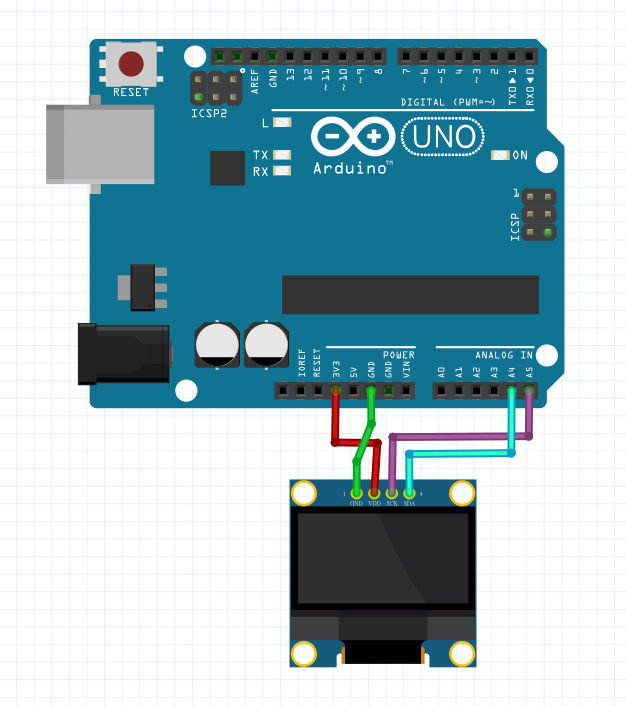

只要是I2C介面的OLED接線都一樣，只有4條線，SDA、SCL接到Arduino Uno板上的A4、A5，VCC接到3.3V，GND接GND，就搞定了。
先下載wonho-maker的SH1106函式庫，下庫網址：
https://github.com/wonho-maker/Adafruit_SH1106
而這個函式庫還要Adafruit GFX Library函式庫來配合，所以請一併安裝。
因為要做圖形，會用到Image2LCD，Image2LCD下載網址：
http://www.e-paper-display.com/download_detail/downloadsId=625.html
程式和SSD1106幾乎一樣，比較細節的說明，請參考之前傑森寫的SSD1106的教學，這裡就不多說囉！
Arduino 運用SSD1306 OLED 0.96吋 、0.91吋
SH1106範例程式下載：
http://jmaker.banner.tw/doc/sh1106_128x64_13.zip
/*
* 本範程式為Arduino結合1.3吋OLED的範例程式，由傑森創工提供
* 本程式由wonho-maker改寫的Adafruit函式庫範例進行簡化，若需要進一步學習，建議參考sh1306_128x64_i2c範例
*

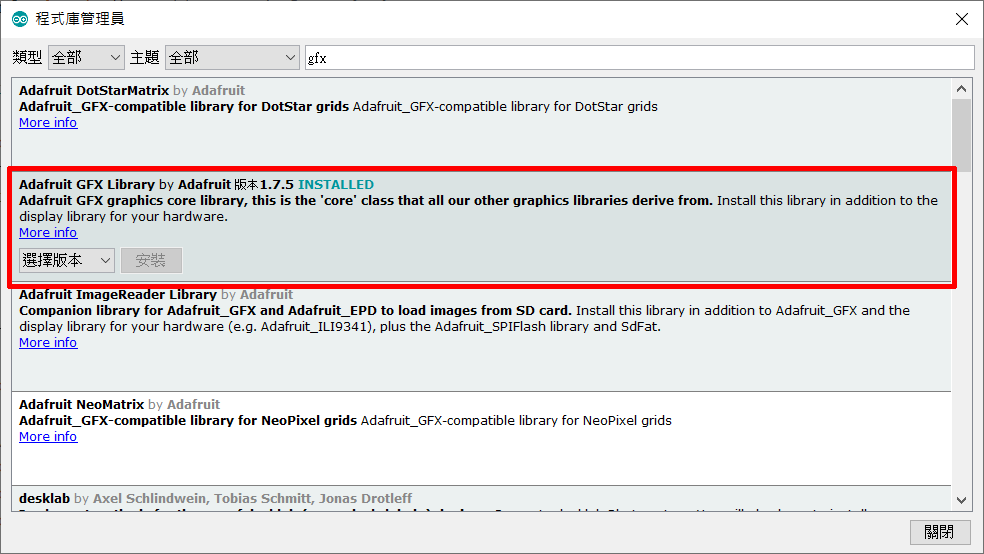

* 1，請先安裝Adafruit GFX Library函式庫，可由Arduino IDE裡的「程式管理員」進行安裝
* 2，請先安裝wonho-maker SH1306函式庫，下載網址：
* https://github.com/wonho-maker/Adafruit_SH1106
*
* 粉絲團：https://www.facebook.com/jasonshow
* 傑森創工購物網：https://www.jmaker.com.tw/
* 傑森創工部落格：https://blog.jmaker.com.tw/
*/
#include <SPI.h>
#include <Wire.h>
#include <Adafruit_GFX.h>
#include <Adafruit_SH1106.h>
// 設定OLED
#define OLED_RESET -1
Adafruit_SH1106 display(OLED_RESET);
//自訂圖形，從Image2LCD轉過來的，尺寸是128x48
//本範例為了在上方區塊顯示文字，所以圖形就沒有涵蓋整個高度
static const unsigned char PROGMEM logo_bmp[] =
{ 0XFF,0XFF,0XFF,0XFF,0XFF,0X80,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,
0XFF,0XFF,0XFF,0XFF,0XFF,0X80,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,
0XFF,0XFF,0XF8,0X7F,0XFF,0X80,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,
0XFF,0XFF,0XF8,0X3F,0XFF,0X80,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,
0XFE,0XFF,0XF8,0X3F,0XFF,0X80,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,
0XFE,0X1F,0XFC,0X7F,0XFF,0X80,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,
0XFC,0X03,0XFD,0XFF,0XFF,0X80,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,
0XE4,0X00,0XFB,0XFF,0XFF,0X83,0X00,0X18,0X00,0X60,0X00,0X38,0X02,0X00,0X00,0X00,
0XE4,0X00,0X1B,0XFF,0XFF,0X83,0X7E,0X18,0X3F,0XFF,0XC0,0XFE,0X03,0X0F,0XFF,0XFC,
0XCC,0X00,0X03,0XFF,0XFF,0X83,0X7F,0XFE,0X7F,0XFF,0XC3,0XC7,0XB3,0X0F,0XFF,0XFC,
0XC8,0X7C,0X00,0XFF,0XFF,0X83,0X46,0XFC,0X01,0XF8,0X07,0XFE,0XB3,0X00,0X0C,0X00,
0XC8,0XFE,0X00,0X1F,0XFF,0X86,0XE6,0XD8,0X03,0XFE,0X00,0XFE,0X33,0X00,0X0C,0X00,
0X99,0XFF,0X00,0X07,0XFF,0X87,0XF4,0XD8,0X1F,0X67,0X80,0X00,0X33,0X00,0X0C,0X00,
0X91,0XFF,0X00,0X00,0XFF,0X8E,0X1C,0XD8,0X7C,0X61,0XE3,0XFF,0X33,0X00,0X0C,0X00,
0X91,0XFF,0X00,0X00,0X1F,0X8E,0X1B,0XFE,0X64,0X62,0X23,0XFF,0XB3,0X00,0X0C,0X00,
0XE1,0XFF,0X00,0X00,0X1F,0X9E,0X31,0XFE,0X0C,0X26,0X03,0XFF,0XB3,0X00,0X0C,0X00,
0XE0,0XFE,0X01,0X80,0X1F,0X9E,0XE1,0X18,0X7F,0X9F,0XE3,0XFF,0XB3,0X00,0X0C,0X00,
0XE0,0X7C,0X03,0XE0,0X3F,0X86,0X43,0X08,0XFF,0X9F,0XE3,0X01,0XB3,0X00,0X0C,0X00,
0XC0,0X38,0X07,0XE0,0X3F,0X86,0XFF,0XFC,0X0C,0X07,0X03,0XFF,0XB3,0X00,0X0C,0X00,
0XF0,0X00,0X07,0XF0,0X4F,0X86,0XFF,0XFC,0X1E,0X0F,0X03,0XFF,0X33,0X00,0X0C,0X00,
0XFE,0X00,0X07,0XE0,0X4F,0X86,0X07,0X80,0X3F,0X9F,0X83,0X00,0X33,0X00,0X0C,0X00,
0XC7,0XC0,0X07,0XE0,0X9F,0X86,0X0F,0XC0,0X3D,0X9E,0XC2,0X7F,0X33,0X00,0X0C,0X00,
0X81,0XF0,0X03,0XC0,0X9F,0X86,0X3F,0X70,0X6C,0X36,0XE6,0X7F,0X83,0X00,0X0C,0X00,
0X80,0X3E,0X00,0X01,0X9F,0X86,0XF3,0X3C,0XCC,0X66,0X66,0X61,0X83,0X00,0X0C,0X00,
0XC0,0X07,0X80,0X01,0X3F,0X86,0XE3,0X0C,0X0C,0X06,0X06,0X7F,0X83,0X1F,0XFF,0XFE,
0XF8,0X01,0XF0,0X01,0X31,0X86,0X03,0X00,0X0C,0X06,0X06,0X7F,0XBE,0X1F,0XFF,0XFE,
0XBF,0X00,0X3E,0X03,0XF1,0X86,0X03,0X00,0X04,0X02,0X00,0X41,0X1C,0X00,0X00,0X00,
0X8F,0XC0,0X0F,0X83,0XF1,0X80,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,
0XCC,0XE0,0X01,0XF7,0XF3,0X80,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,
0XCC,0X1C,0X00,0X3F,0XF1,0X80,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,
0X8D,0XC7,0XC0,0X0F,0XF0,0X80,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,
0X8E,0X38,0XF8,0X0F,0XF8,0X83,0X00,0X00,0X30,0X00,0X00,0X00,0X00,0X00,0X00,0X00,
0X83,0X8E,0X1E,0X0F,0XFF,0X82,0X00,0X00,0X30,0X00,0X00,0X00,0X00,0X00,0X00,0X00,
0X80,0X71,0XC7,0XDF,0XF3,0X80,0X00,0X00,0X30,0X00,0X00,0X00,0X00,0X00,0X30,0X00,
0X80,0X1C,0X67,0XFF,0XF9,0X83,0X7D,0XCF,0X33,0X39,0XE0,0XE3,0X9F,0X70,0X7A,0X26,
0X81,0XE3,0X8C,0X7F,0XC7,0X83,0X6E,0XC9,0XB6,0X6D,0XE1,0X86,0XDD,0XD8,0X33,0X66,
0X81,0XFC,0XF8,0X1F,0X83,0X83,0X66,0X61,0XBC,0X4D,0X81,0X0C,0X59,0X98,0X33,0X74,
0X80,0XFE,0X13,0X1C,0X47,0X83,0X66,0X6F,0XBC,0XFD,0X83,0X0C,0X79,0X98,0X33,0X54,
0X80,0X3E,0X00,0X24,0X6F,0X83,0X66,0X69,0XB6,0XC1,0X81,0X0C,0X59,0X98,0X31,0XDC,
0X83,0X3E,0X00,0X64,0X7F,0X83,0X66,0X79,0XB6,0X61,0X8D,0X86,0XD9,0X9B,0X31,0X98,
0X83,0X70,0X00,0X47,0XFF,0X83,0X66,0X6F,0XB3,0X39,0X8C,0XE3,0X99,0X9B,0X19,0X98,
0X87,0XF0,0X00,0XC7,0XFF,0X83,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,
0X87,0XF0,0X00,0X8F,0XFF,0X86,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,
0X81,0XE0,0X01,0XFF,0XFF,0X84,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,
0X80,0X60,0X03,0XFF,0XFF,0X80,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,
0X80,0X00,0X03,0XFF,0XFF,0X80,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,
0X80,0X00,0X67,0XFF,0XFF,0X80,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,
0XFF,0XFF,0XFF,0XFF,0XFF,0X80,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00, };
#if (SH1106_LCDHEIGHT != 64)
#error("Height incorrect, please fix Adafruit_SH1106.h!");
#endif
void setup() {
Serial.begin(9600);
display.begin(SH1106_SWITCHCAPVCC, 0x3C); // 一般1306 OLED的位址都是0x3C
// 顯示Adafruit的LOGO，算是開機畫面
display.display();
delay(1000); // 停1秒
// 清除畫面
display.clearDisplay();
// 測試文字
display.clearDisplay();
display.setTextSize(2); // 設定文字大小
display.setTextColor(1); // 1:OLED預設的顏色(這個會依該OLED的顏色來決定)
display.setCursor(0,0); // 設定起始座標
display.print("Hello OLED"); // 要顯示的字串
display.display(); // 要有這行才會把文字顯示出來
delay(1000);
//display.clearDisplay();
//顯示圖形，x,y,圖形文字,寬,高,1:OLED預設的顏色(這個會依該OLED的顏色來決定)
display.drawBitmap(0,16,logo_bmp, 128, 48, 1);
display.display(); // 要有這行才會把文字顯示出來
delay(1000);
}
void loop() {
}
